Antenna Products’ commercial antennas are 2nd to none in performance and quality. The company’s is a major supplier for antennas designed for the transportation sector of the industry specifically focusing on the railway market for subways and trains both on board and trackside. Antenna Products Corporation, an ISO 9001:2015 commercial antenna manufacturer, has been designing and supplying antennas to several major wireless carriers as well as the transportation industry since 1947. We manufacture an extensive line of industrial WiFi antennas including RFID, electronic toll readers, train antennas, as well as small cell and DAS (Distributed Antenna Systems) products that cover 700 MHz (including LTE), Cellular/SMR, GSM, PCS and AWS frequency ranges in single, dual and quad antenna configurations, many with MIMO.
Industrial WiFi/ Transportation Antennas
Our industrial broadband WiFi antennas for ITS (Intelligent Transportation Systems) including RFID, ISM WiFi, train antennas and feature panel, sector and horn configurations.
White Space Antennas
Our white space antennas include both omnidirectional and log periodic Yagi designs with type “N” female connectors and pole mounting hardware. Antenna Products manufactures UHF white space antennas covering the 470-698 MHz frequency spectrum including omnidirectional and Yagi directional antenna configurations.
All Commercial Antennas
AWS360D-1710-7-T0M-D DAS Dual Band AWS PCS Antenna 7 dBi LTE
- Frequency Range: 1710 to 2155 MHz and 1850 to 1990 MHz bands
- Gain: 7 dBi (both bands)
- VSWR: 1.7:1 max
- Polarization: Vertical
- Beamwidth: 16 degrees vertical; 360 degrees horizontal
- Size: 48" x 2" O.D.
- Mounting: Pole mount (up to 3" diameter)
- Model Number: AWS360D-1710-7-T0M-D
ISM50-2400-18-T0-N 2400-2500 MHz 18 dBi 50 Degree ISM Panel Antenna
- Model Number: ISM50-2400-18-T0-N
- Part Number: 1009-0428-401
- Frequency Range: 2400-2500 MHz
- Gain: 18 dBi
- Polarization: Vertical
- Beamwidth: 9 degrees vertical, 50 degrees horizontal
- Size: 32.1" x x 5.1" x 2.2"

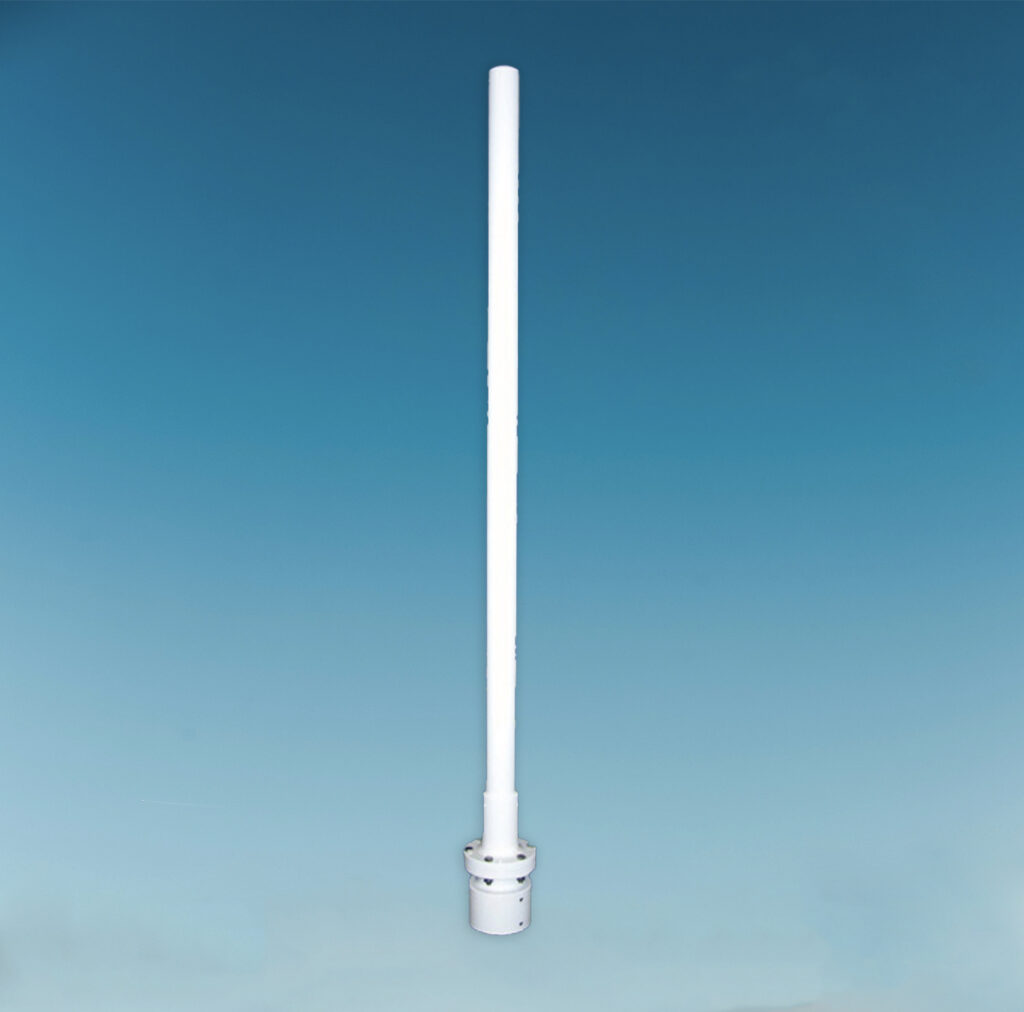

BRSAWS360T-698 Triple Band LTE DAS Antenna AWS/700MHz/AWS Omni
- Frequency Range: 1710-2155 MHz, 698-896 MHz, 1710-2155 MHz
- Gain: 7 dBi, 2 dBi, 7 dBi
- VSWR: < 1.7:1 Typical, < 2.0:1 Maximum
- Polarization: Vertical
- Vertical -3dB Beamwidth: 16° / 70° / 16° ( +/- 5°)
- Horizontal -3dB Beamwidth: 360o (+/- 5°)
- Size: 60" x 2" OD
- Mounting: Top mount
- Model Number: BRSAWS360T-698/1710-7/2/7-T0M-D
BMT35BRC-5755-10-TA-N Bi-Directional Wi-Fi Train Antenna 5755-5875 MHz 10 dBi
- Frequency Range: 5755-5875 MHz
- Gain: 10 dBi
- VSWR: 1.8:1 max
- Polarization: Right Hand Circular
- Beamwidth: 35 degrees vertical, 35 degrees horizontal
- Size: 8.5" L x 8.5" W x 3.5" H
- Model Number: BMT35BRC-5755-10-TA-N
- Part Number: 1009-0705-401
BMT55RC-2400-9-TA-N Wi-Fi Train Antenna
2400-2485 MHz 9 dBi
- Frequency Range: 2400-2485 MHz
- Gain: 9 dBi
- VSWR: 1.8:1 max
- Polarization: Right Hand Circular
- Beamwidth: 55 degrees vertical, 55 degrees horizontal
- Size: 7" L x 8" W x 3" H
- Part Number: 1009-0706-401
- Model Number: BMT55RC-2400-9-TA-N
BRSAWS360Q-698 Wideband MIMO Dual Antenna Omni 700/850 MHz and AWS/PCS Side Mount
- Frequency Range: 698-896 and 1710-2155 MHz
- Gain: 2 dBi (698-896 MHz); 2 dBi (AWS and PCS bands)
- VSWR: 2.0:1 max
- Polarization: Vertical
- Beamwidth: 75/75/75/75 degrees vertical; 360 degrees horizontal (omni)
- Size: 60” x 2.0” OD
- Mount: Next to a post or on a utility pole
- Model Number: BRSAWS360Q-698/1710-2/2/2/2-T0-D
VHF360-216-8-T0 VHF Broadband Antenna 216-226 MHz 8 dBi Omni
- Frequency Range: 216-226 MHz
- Gain: 8 dBi
- VSWR: 1.5:1 nominal
- Polarization: Vertical
- Beamwidth: 16 degrees vertical, 360 degrees horizontal (omni)
- Size: 240" L x 3.0" OD or 180" L x 3.0" OD
PSB40DP-4960-12-T0-N PSB 3-Port Outdoor MIMO RFID Antenna 4000-6000 MHz 12 dBi
- Frequency Range: 4900-6000 MHz
- Gain: 12 dBi
- VSWR: 2.0:1
- Polarization: Vertical, Horizontal, Vertical
- Beamwidth: 40 degrees vertical, 40 degrees horizontal
- Size: 2.7" H x 3.7" W x 5.5" D
ISM25-2400-12-T0-N-SV6 UHF RFID WiFi Panel Antenna 2400-2485 MHz 12 dBi 25 Degree
- Frequency Range: 2400-2485 MHz
- Gain: 12 dBi
- VSWR: 1.6:1 max
- Polarization: Linear
- Beamwidth: 70 degrees vertical, 25 degrees horizontal
- Size: 8.55” x 4.46” x 2.19”
BMT60B-2400-7-TA-N WiFi Train Antenna
2400-2485 MHz 7 dBi
- Frequency Range: 2400-2485 MHz
- Gain: 7 dBi
- VSWR: 1.8:1 max
- Polarization: Vertical
- Beamwidth: 60 degrees vertical, 60 degrees horizontal
- Size: 7" L x 8" W x 3" H
- Part Number: 1009-0476-405
- Model Number: BMT60B-2400-7-TA-N
BMT60-2400-9-T0-N-V3 WiFi Train Antenna 2400-2485 MHz 9 dBi
- Frequency Range: 2400-2485 MHz
- Gain: 9 dBi
- VSWR: 1.5:1 max
- Polarization: Vertical
- Beamwidth: 45 degrees vertical, 60 degrees horizontal
- Size: 8.88" L x 4.18" W x 3.97" H
BMT35B-5755-12-TA-N WiFi Train Antenna 5755-5875 MHz 12 dBi
- Frequency Range: 5755-5875 MHz
- Gain: 12 dBi
- VSWR: 1.5:1 max
- Polarization: Vertical
- Beamwidth: 25 degrees vertical, 35 degrees horizontal
- Size: 8.5" L x 8.5" W x 1.5" H
